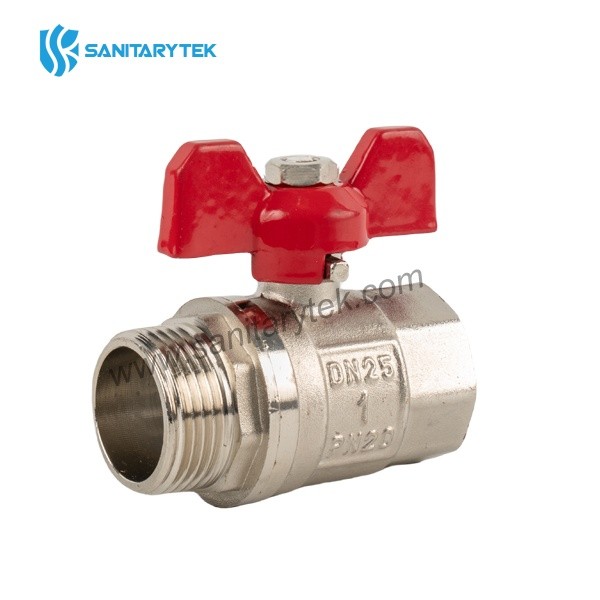

Brass ball valve red butterfly handle, M/F
Code: V20-006
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
• Body in nickel-plated brass.• male-female
• With gland, PTFE seat and gland packing.
• Steel flat handle (red or blue).
• Working temperatures: -10°C to +110°C.
• Working media: water
• Thread: ISO228.
• The butterfly ball valve is made of high quality nickel-plated brass with internal and external thread according to the European standards ISO 228 and is designed for indoor and commercial indoor or outdoor installations indoors or outdoors. The cocks can only be used to fully open or close the media flow. The cock is manually operated, direct, full flow and suitable for water with a maximum pressure of up to 25 bar and an operating temperature of up to 110°C. The ball seal is Teflon.
| Code | Size |
| V20-006 | 3/8" |
| V20-006 | 1/2" |
| V20-006 | 3/4" |
| V20-006 | 1" |
