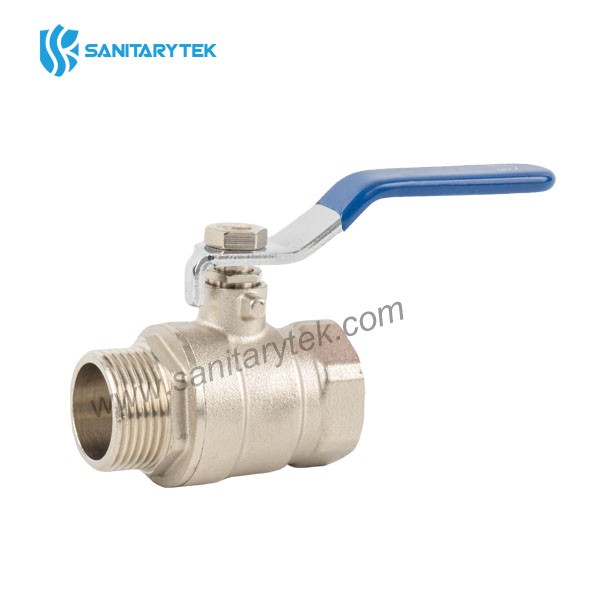

Brass ball Valve M/F with blue steel flat handle
Code: V20-011B03
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
Brass ball Valve forged, MXF, with blue steel flat handle
• Body in nickel-plated brass.• male-female
• With gland, PTFE seat and gland packing.

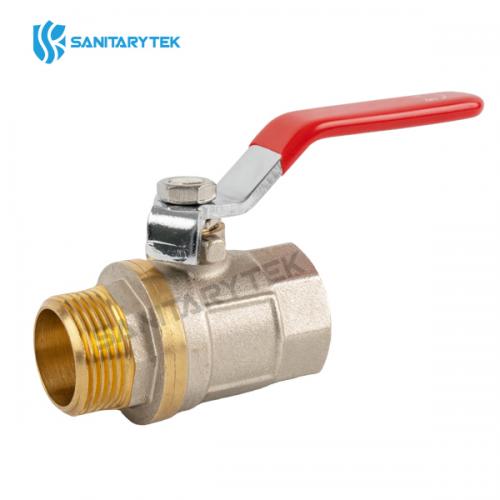

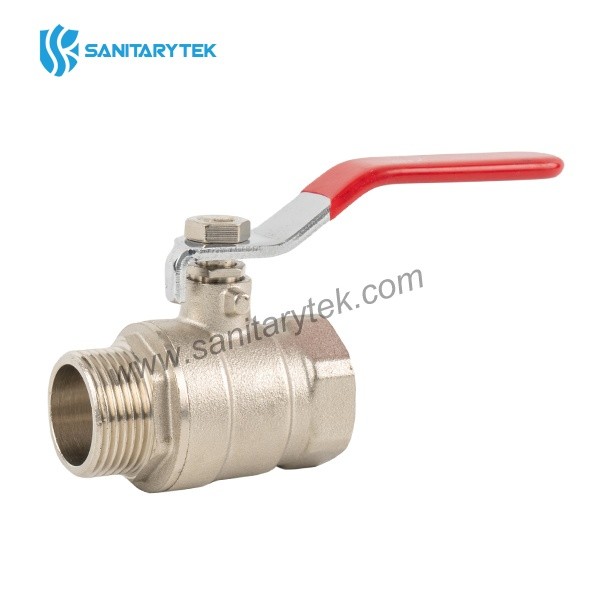

• Blue flat lever handle in steel (red optional).
• Working temperatures: -10°C to +120°C.
• Working media: water
• Thread: ISO228
• The ball valve is made of high-quality nickel-plated brass with internal and external threads according to the European standards ISO 228 and is designed for indoor and commercial indoor or outdoor installations indoors or outdoors. The cocks can only be used to fully open or close the media flow. The cock is manually operated, direct, full flow and suitable for water. The ball seal is Teflon.
| Code | Size |
| V20-011B03 | 1/2" |
| V20-011B03 | 3/4" |
| V20-011B03 | 1" |
| V20-011B03 | 1.1/4" |
