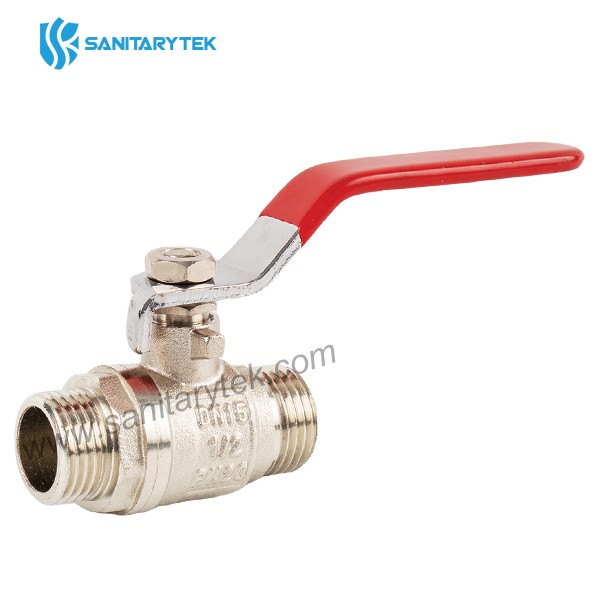

Brass ball valve M-M with red steel flat handle, full bore
- Code:V20-003
- Material:brass
- Size:1/2
- Place of origin:Ningbo, China
- Sample:Support
Save to favoritesView wishlist
Product Description
• Body in nickel-plated brass.
• Male/male thread.
• With gland, PTFE seat and gland packing.
• Steel flat handle (red or blue).
• Working temperatures: -10°C to +110°C.
• Working media: water
• Thread: ISO228.
• This ball valve with external threading uses a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Can be used in residential, commercial plumbing, water wells and many other applications. Ball valves are capable of throttling gases and vapors and are especially useful for low flow situations.
• Male/male thread.
• With gland, PTFE seat and gland packing.
• Steel flat handle (red or blue).
• Working temperatures: -10°C to +110°C.
• Working media: water
• Thread: ISO228.
• This ball valve with external threading uses a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Can be used in residential, commercial plumbing, water wells and many other applications. Ball valves are capable of throttling gases and vapors and are especially useful for low flow situations.
| Code | Size |
| V20-003 | 3/8" |
| V20-003 | 1/2" |
| V20-003 | 3/4" |
| V20-003 | 1" |
| V20-003 | 11/4" |
| V20-003 | 11/2" |
| V20-003 | 2" |
