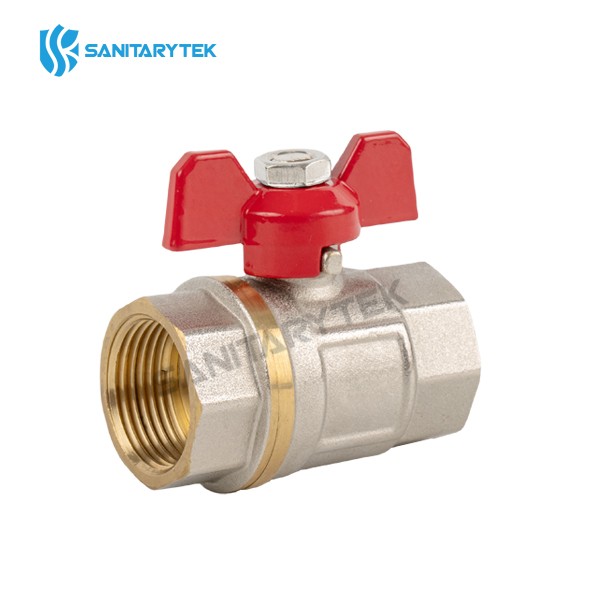

Brass ball valve FF butterfly handle, full flow
- ltem No.:V18-005
- Material:brass
- Application:water, glycol 50%, compressed air
- Delivery time:35-60days
- Sample:Support
Lead time: 35-60days
Save to favoritesView wishlist
Product Description
The butterfly cock is made of high quality nickel-plated brass with internal thread according to the European standards ISO 228. The cocks can only be used to fully open or close the media flow.
The cock is manually operated, direct, full flow. The ball seal is Teflon.
• Body in nickel-plated brass (except thread).
• Female/female thread.
• With gland, PTFE seat and gland packing.
• Butterfly handle in aluminium (red or blue).
• Working temperatures : -10°C to +110°C
• Media: water
• Thread: ISO228
The cock is manually operated, direct, full flow. The ball seal is Teflon.
• Body in nickel-plated brass (except thread).
• Female/female thread.
• With gland, PTFE seat and gland packing.
• Butterfly handle in aluminium (red or blue).
• Working temperatures : -10°C to +110°C
• Media: water
• Thread: ISO228
Code
Size
V18-005
3/8"
V18-005
1/2"
V18-005
3/4"
V18-005
1"

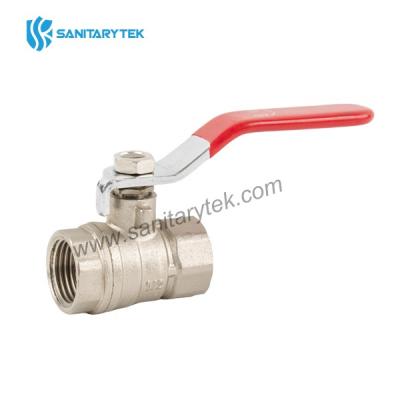

Full bore brass ball valve MF, red lever handle
