  • Angle thermostatic set - thermostatic valve, lockshield valve, thermostatic head - Image 1
Angle thermostatic set - thermostatic valve, lockshield valve, thermostatic headcloseleftright

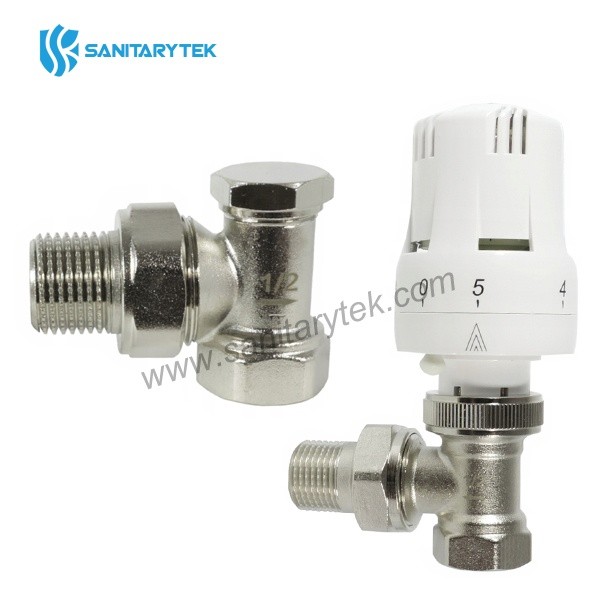

Angle thermostatic set - thermostatic valve, lockshield valve, thermostatic head

  • Code:V21-153
  • Material:Brass
  • Finish:nickel plated
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Angle Thermostatic Set - thermostatic valve, return valve with thermostatic head

    High-quality thermostatic set for connecting a heating device to the installation and precise temperature setting in the room. Thermostatic sets are available in a straight and angular version. The set includes a thermostatic head, a radiator valve and a lockshield valve.

    • body in brass
    • finishing: nickel plated
    • thermostatic head with M30 x 1.5 connection code V21-027A011
    • thermostatic angle valve code V21-053
    • angle lockshield valve code V21-264
    • working temperatures : 0°C to +90°C
    • maximum working pressure: 1.0 Mpa (10 bar)
    • max. ambient temperature: 50°C
    • scale of adjustment: 2 - 5
    • adjustment range: up to 28°C
    • valve connection: 1/2”
    • working medium: water
    • Threads: ISO 228


    Code Size Finishing
    V21-153 1/2"x1/2" nickel plated
