• Angle return radiator valve with screw connection for multilayer pipes
Angle return radiator valve with screw connection for multilayer pipes close left right

Angle return radiator valve with screw connection for multilayer pipes

Code: V21-214

Material: Brass

Finish: nickel plated

Place of origin: Ningbo,China

Product Description

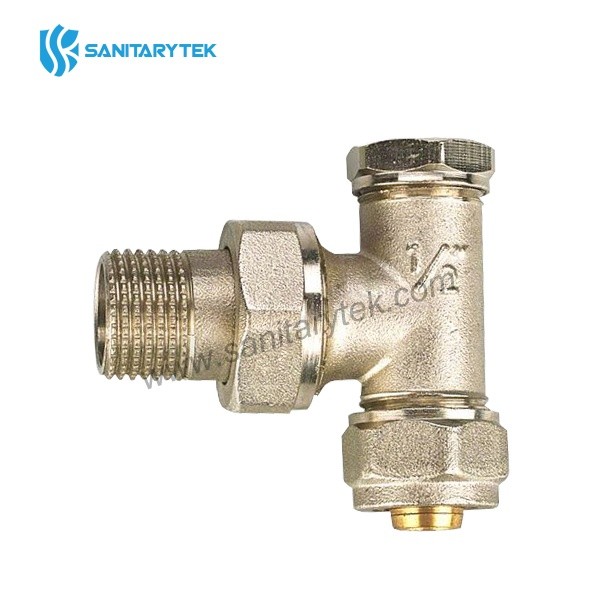

Brass angle radiator lockshield valve with PEX adaptor for multilayer pipe


High-quality radiator valves with a PEX adaptor for connecting a heating device to the installation. Radiator and shut-off valves are available in straight and angular versions. Made of brass. All valves are sandblasted and then nickel-plated. Angle locksheild valve to connect radiator to PEX pipe system. Radiator valve has got 1/2 Inch BSP connection on one end and PEX compression connection on the other end.

• body in nickel-plated brass
• adaptor Ø 16x2.0 PEX compression connection
• maximum working pressure: 1.0 Mpa (10 bar).
• working temperatures : 0°C to +90°C
• working medium: water
• Threads: ISO 228



Code Size
V21-214 1/2"x16/2.0
