• Wall plate female elbow fitting - press connector
Wall plate female elbow fitting - press connector close left right

Wall plate female elbow fitting - press connector

Code: F10-502

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

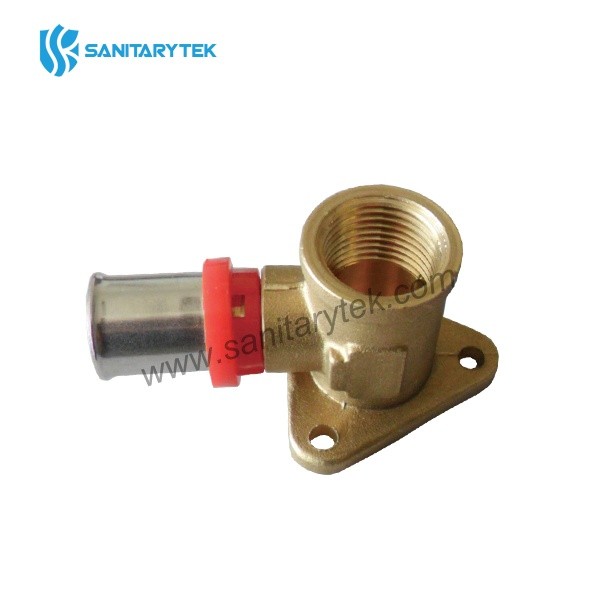

Wall plate female elbow fitting


Press fittings for multilayer pipe of F10 Series are suitable for cold or hot water supply for sanitary or heating systems, and for any kind of sanitary installation such as domestic, commercial, industry and farming and with non-aggressive fluids. Fitting body is made of brass, while the sleeve is made of AISI 304 stainless steel.

Code Size
F10-502 1/2" x 16 x 2,0
F10-502 1/2" x 18 x 2,0
F10-502 1/2" x 20 x 2,0
F10-502 3/4" x 20 x 2,0
F10-502 3/4" x 26 x 3,0

• Press fittings for multilayer pipe is standard quickly way to do plumbing and hydronic installations.
• Fittings are suitable for cold or hot water supply for sanitary or heating systems.
• Fitting body is made of brass, while the sleeve is made of stainless steel.
• Plastic external O-ring can be supplied in different color.
• Finishing: yellow brass
• Threaded: ISO 228
