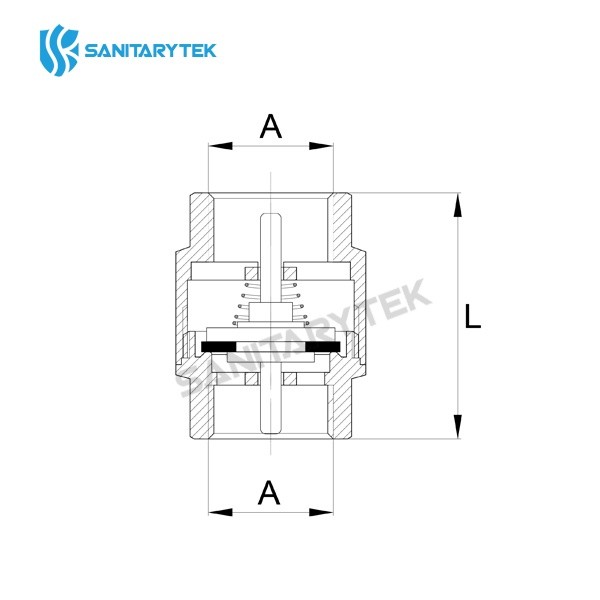

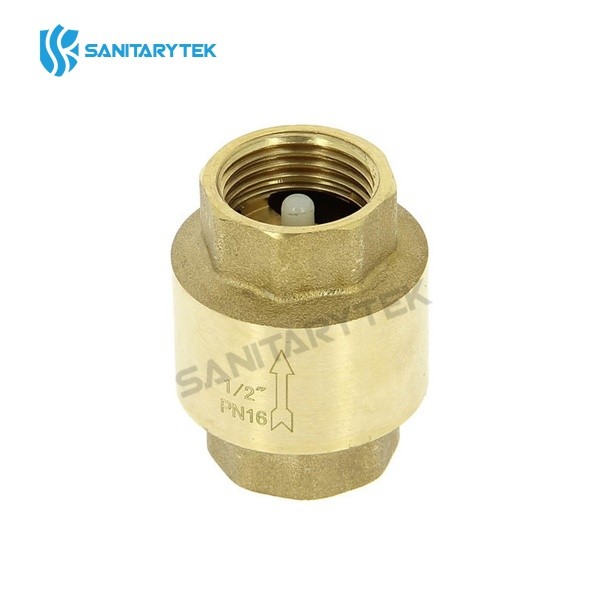

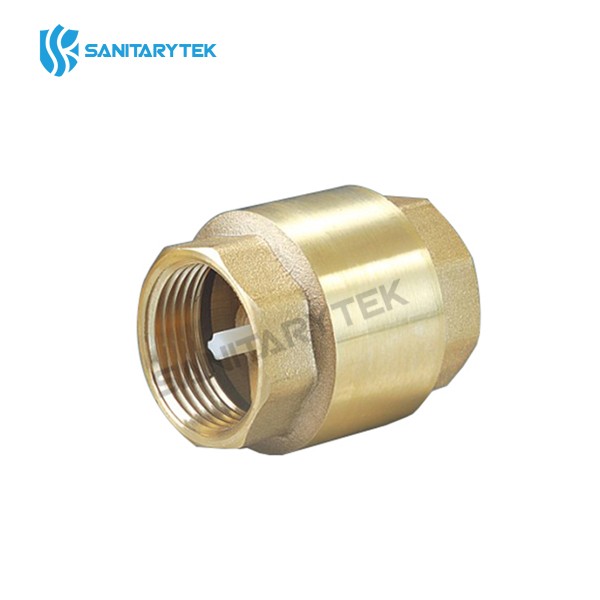

Universal spring brass check valve with plastic core
Code: V24-001
Material: brass
Color: yellow brass
Size: 1/2"-4"
Place of origin: Ningbo, China
Sample: Support
Product Description
Universal Spring Brass Check Valve, plate in polymer
• Non return valve with a steel spring is used as a mixer for vertical and horizontal installation for cold and hot water.
• Body in brass.
• Plate in plastic.
• Stainless steel spring
• Working temperatures: 0°C to +100°C.
• Operating pressure: max. 10 bar.
• Media: water
• Connection: BSP.
• Size: 1/2" - 4"
Code | Size |
V24-001 | 1/2" |
V24-001 | 3/4" |
V24-001 | 1" |
V24-001 | 11/4" |
V24-001 | 11/2" |
V24-001 | 2" |
V24-001 | 2-1/2" |
V24-001 | 3" |
V24-001 | 4" |
