• Stainless steel or Aluminium alloy braided hose DIA 20mm
Stainless steel or Aluminium alloy braided hose DIA 20mm close left right

Stainless steel or Aluminium alloy braided hose DIA 20mm

Code: H02-017

Material: stainless steel

Product Description

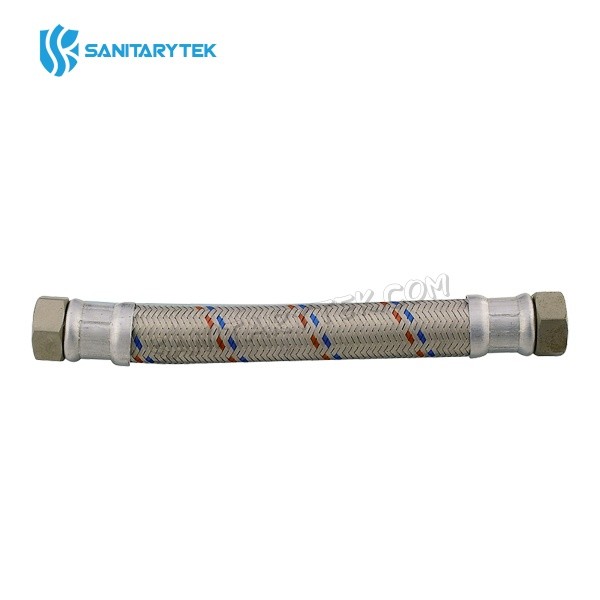

Flexible Braided Hose with Stainless Steel Braiding or Aluminium Alloy Braiding


Code Size Length (cm)
H02-017 1"Fx1"F 30, 40, 50, 60, 80, 100
H02-017MF 1"Mx1"F 30, 40, 50, 60, 80, 100

• DN25
• Female-Female or Male-Female
• With stainless steel braiding / Aluminium alloy brading and brass connections (red&blue marker).
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
