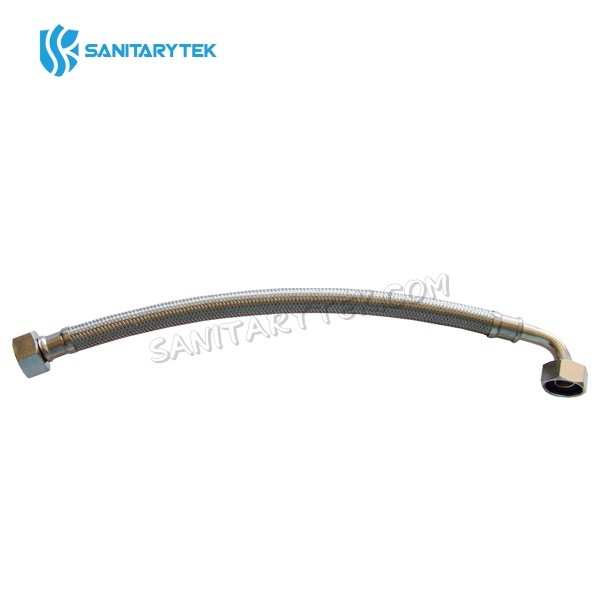

Stainless steel connecting hose, FxF, with elbow
- Code:H02-019
- Material:stainless steel
- Connection:FxF
Save to favoritesView wishlist
Product Description

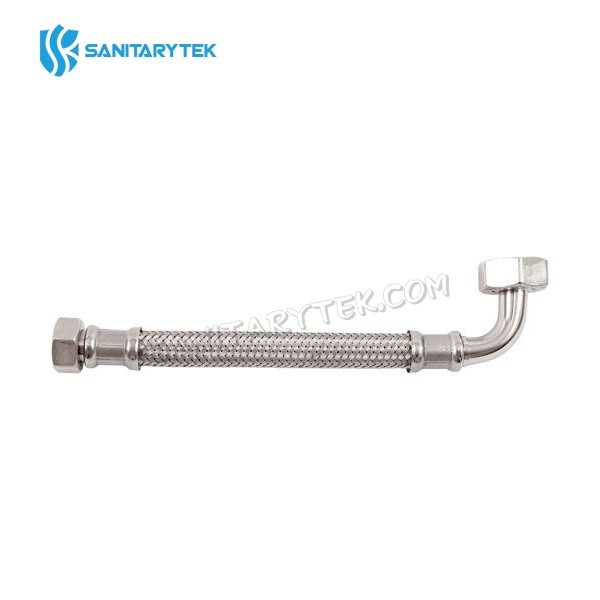

Stainless Steel Braided Hose with Elbow, FxF, swivel nut x female thread
Stainless steel braide flexible hoses are often used to connect a toilet, reservoirs and pedestal faucets and other devices. Hoses are made from high quality EPDM with quality S.S. braiding and with quality stainless steel and nickel-plated brass endings with inner and outer thread.
| Code | Size (FxFC) | Length (cm) |
| H02-019 | 3/8"x1/2" | 30, 40, 50, 60, 80, 100 |
| H02-019 | 1/2"x1/2" | 30, 40, 50, 60, 80, 100 |
| H02-019 | 1/2"x3/4" | 30, 40, 50, 60, 80, 100 |
| H02-019 | 3/4"x3/4" | 40, 50, 60, 70, 80, 100 |
• Female - Eblow female
• With stainless steel braiding and brass connections.
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
