Stainless steel braiding flexible mixer hose with tip, pair
- Code:H02-001
- Material:stainless steel
Save to favoritesView wishlist
Product Description

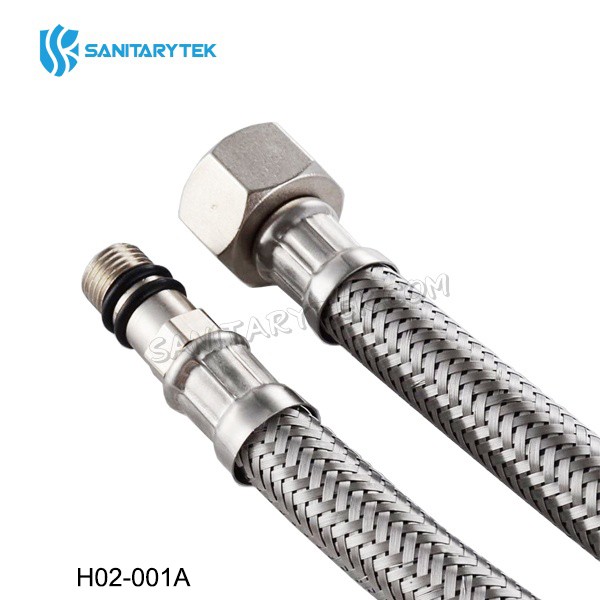

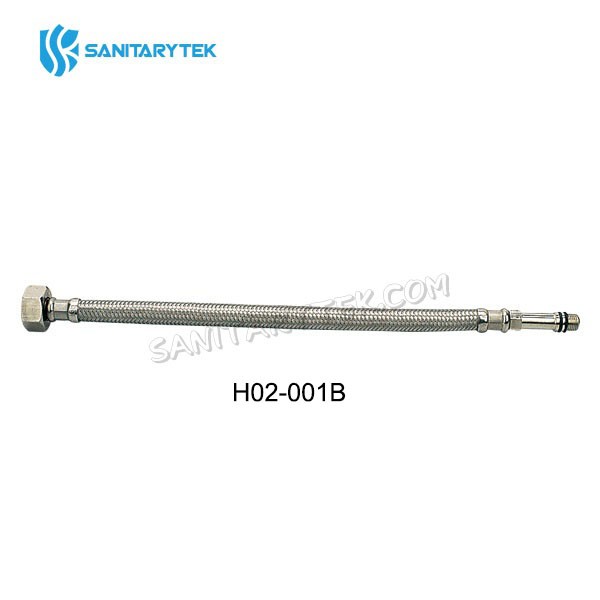

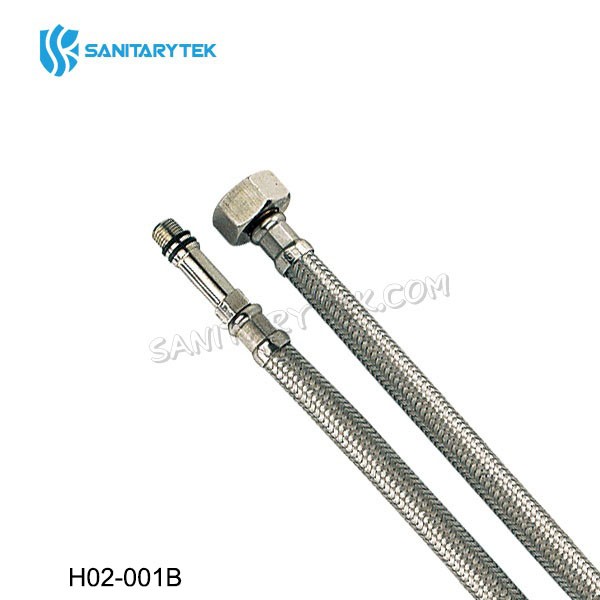

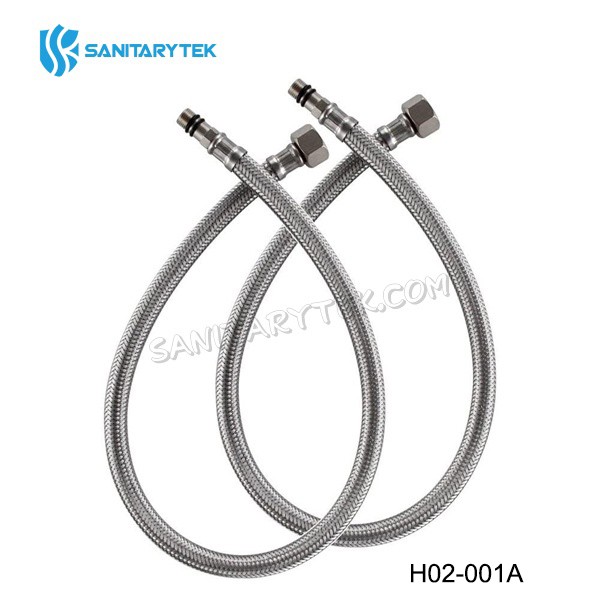

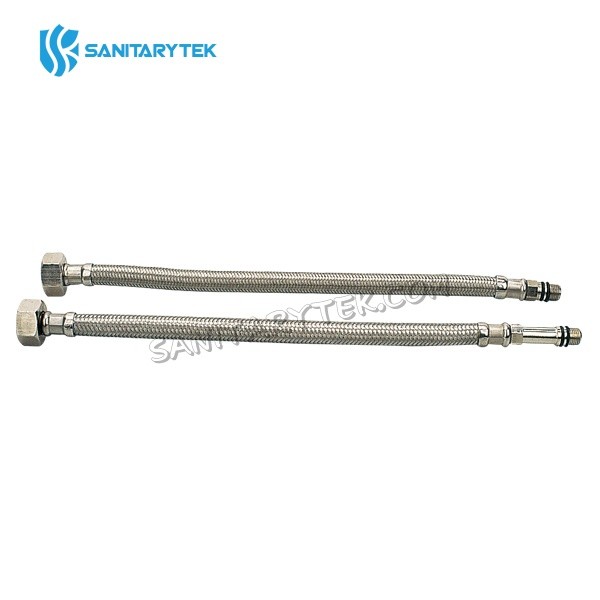

Flexible Tap Connector for Mixer Pair (Long, Short)
A pair of stainless steel braided hose which is flexible and resistant to kinks and bends. Constructed with a female BSP fitting at one end and an M10 or M12 monobloc thread at the other end. This hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.
| Code | Size | Length (cm) |
| H02-001 | 3/8"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001 | 1/2"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001 | 3/8"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-001 | 1/2"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-001A | 3/8"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001A | 1/2"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001A | 3/8"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-001A | 1/2"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-001B | 3/8"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001B | 1/2"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-001B | 3/8"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-001B | 1/2"FxM12x1 | 30, 35, 40, 50, 60 |
• H02-001 is a pair (Set of 2). H02-001A or H02-001B is a 1 pcs.
• Constructed with a stainless steel outer braid
• Reliable watertight connection
• Reinforced crimped ends for a firm secure connection
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
