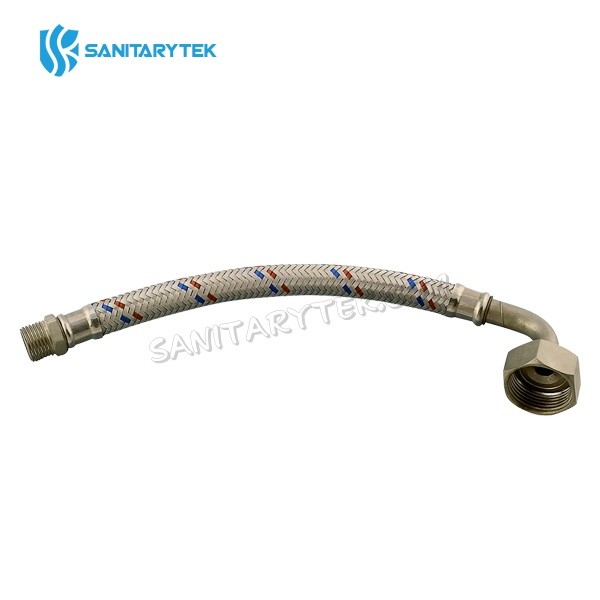

Flexible braided hose with stainless steel braiding elbow, MxF

Code: H02-008

Material: stainless steel

Connection: MxF

Product Description

Flexible Braided Hose with Stainless Steel Braiding Elbow, swivel nut x male thread (red & blue matker)


Stainless steel braide flexible hoses are often used to connect a toilet, reservoirs and pedestal faucets and other devices. Hoses are made from high quality EPDM with quality S.S. braiding and with quality stainless steel and nickel-plated brass endings with female thread.

Code Size (MxF) Length (cm)
H02-008 3/8"x3/8" 30, 40, 50, 60, 80, 100
H02-008 1/2"x1/2" 30, 40, 50, 60, 80, 100
H02-008 3/4"x3/4" 30, 40, 50, 60, 80, 100
H02-008 1"x1" 40, 50, 60, 70, 80, 100

• Size: M3/8"xF3/8", M1/2"xF1/2", M3/4"xF3/4", M1"xF1"
• Male - Eblow female
• With stainless steel braiding and brass connections (red&blue marker).
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
