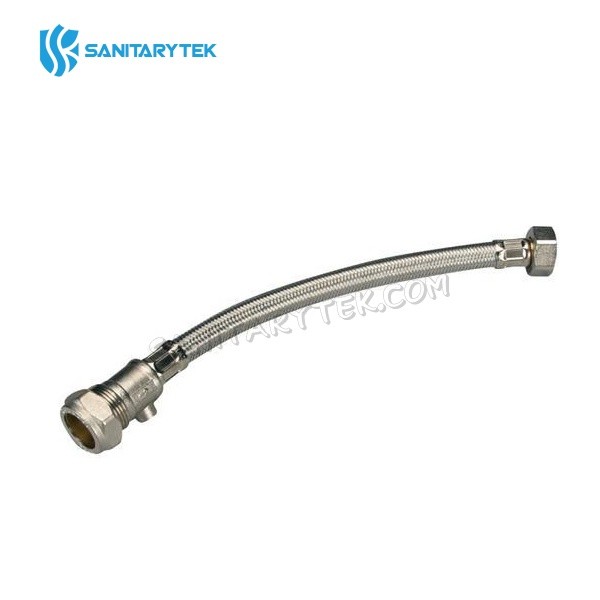

Stainless steel braided flexible hose with isolation valve
Code: H02-006
Material: stainless steel
Product Description
Stainless Steel Braided Flexible Tap Connector with Isolation Valve
Stainless steel braided hose which is flexible and resistant to kinks and bends. Constructed with a isolating compression fitting at one end and a female BSP thread at the other end. This flexible hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.
Code | Size | Length (cm) |
H02-006 | 1/2"Fx 15mm | 30, 40, 50, 60, 90 |
H02-006 | 3/4"Fx 15mm | 30, 40, 50, 60, 90 |
H02-006 | 3/4"Fx 22mm | 30, 40, 50, 60, 90 |
• Constructed with a stainless steel outer braid
• Reinforced crimped ends for a firm secure connection
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
