Stainless steel braided connection hose FxM10x1 or FxM12x1, with short tip
- Code:H02-043
- Material:stainless steel
Save to favoritesView wishlist
Product Description

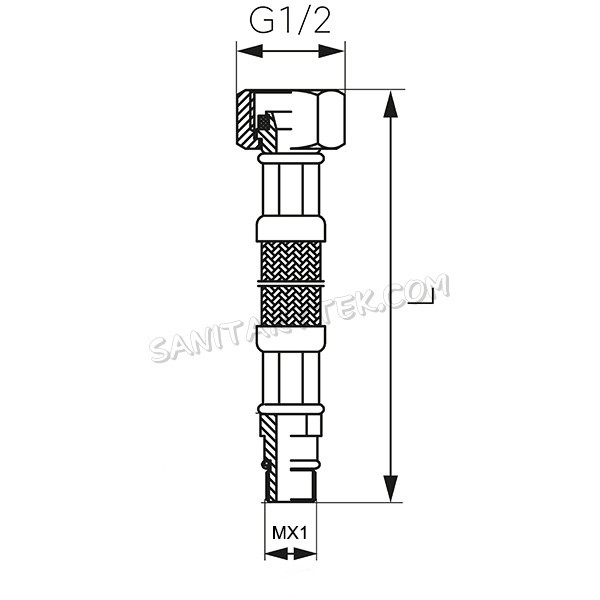

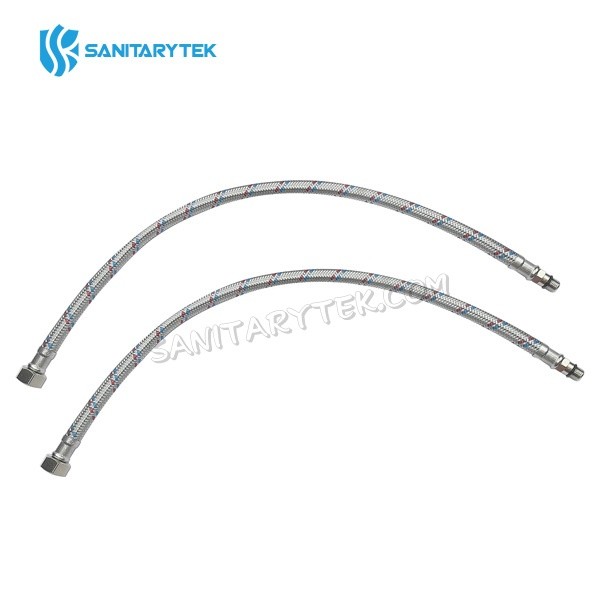

Stainless Steel Flexible Mixer Hose FxM10x1, FxM12X1, with short tip

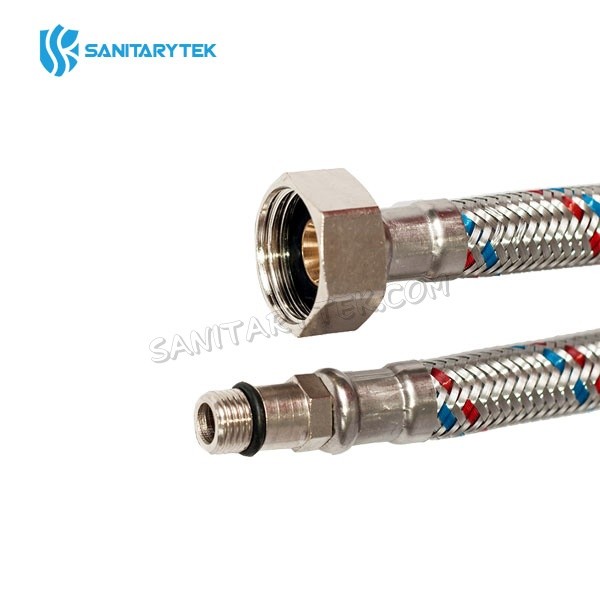

A pair of stainless steel braided hose which is flexible and resistant to kinks and bends. Constructed with a female BSP fitting at one end and an M10 or M12 monobloc thread at the other end. This hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.
| Code | Size | Length (cm) |
| H02-043 | 3/8"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-043 | 1/2"FxM10x1 | 30, 35, 40, 50, 60 |
| H02-043 | 3/8"FxM12x1 | 30, 35, 40, 50, 60 |
| H02-043 | 1/2"FxM12x1 | 30, 35, 40, 50, 60 |
• Constructed with a stainless steel outer braid (red & blue matker)
• Reliable watertight connection
• Reinforced crimped ends for a firm secure connection
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)
