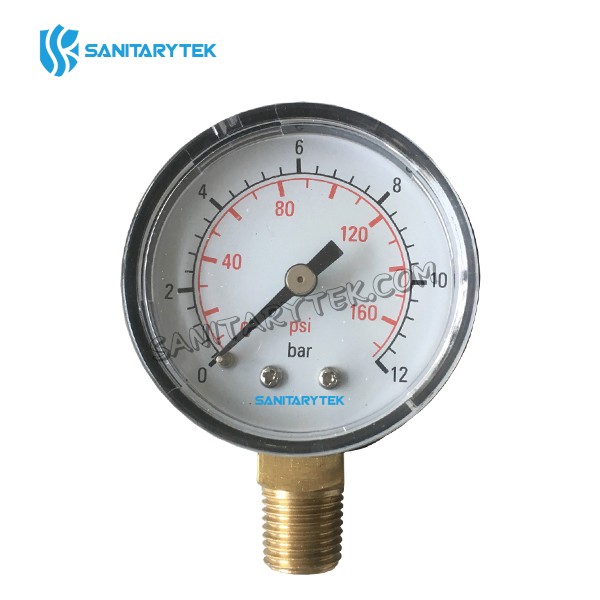

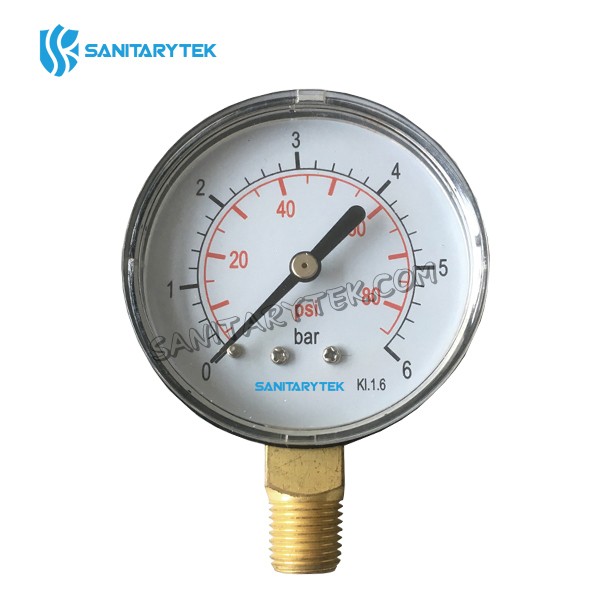

Pressure gauge with vertical connection, ABS case
- Code:GP421
- Casing:plastic
- Working temperatures:0°C to +60°C
- Connection:1/4"
- MOQ:2000 pcs
MOQ 2000 pcs
Save to favoritesView wishlist
Product Description
Pressure Gauge with bottom connection, ABS cast
| Code | Range | Connection | Dial dia. |
| GP421 | 0-6 bar | 1/4" | 50mm |
| GP421 | 0-12 bar | 1/4" | 63mm |
| GP421 | 0-12 bar | 1/8" | 40mm |
• Casing: high resistance ABS
• Cover: scratch-resistant plastic
• Dial: powder-coated aluminium
• Type: pressure gauge with bourdon tube spring
• Bottom connection
• Range (bar): 0-6 bar, 0-12 bar
• Dial diameter: 40mm, 50mm, 63mm
• Connection: 1/8" , 1/4" brass
• Thread: BSP, NPT
