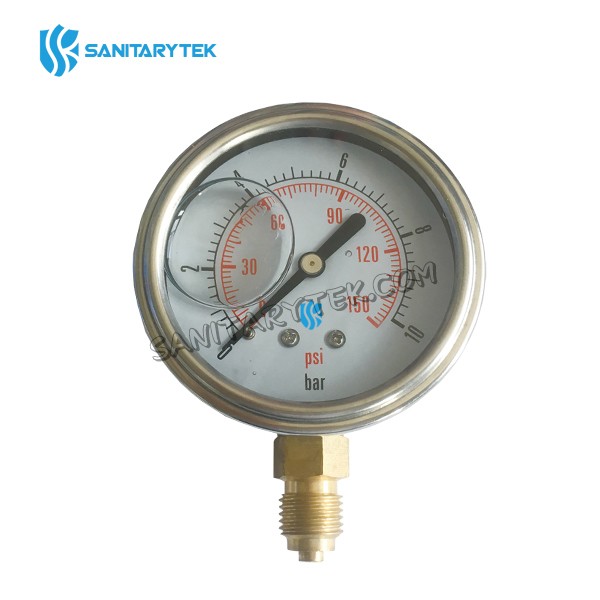

Glycerine pressure gauge, stainless steel casing, bottom connection
Code: GP431
Casing: stainless steel
Model: Glycerin Pressure Gauge
Type: Manometer Glycerine onder aansluiting
MOQ: 2000 pcs
Place of origin: Ningbo, China
Product Description
Glycerine Pressure Gauge Stainless Steel Case, Bottom Connection
| Code | Range | Connection | Dial dia. |
| GP431 | 0-10bar | 1/8" | 2-1/2" |
• Casing: stainless steel
• Cover: Methacrylate glass
• Dial: powder-coated aluminium
• Filled: Glycerine
• Bottom connection
• Working temperatures: 0°C to +60°C
• Dial diameter: 2-1/2"
• Range (bar): 0-10 bar
• Connection: 1/4" brass
• Thread: BSP, BSPT, NPT
