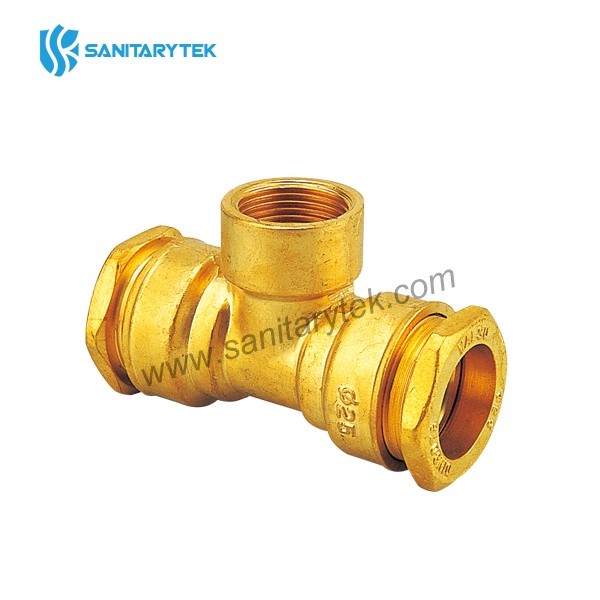

• Female tee coupler PE-F-PE
Female tee coupler PE-F-PE close left right

Female tee coupler PE-F-PE

Code: F08-302

Material: brass

Place of origin: Ningbo, China

Sample: Support

Product Description

Female Tee Coupling for polyethylene pipe

Female tee coupler in brass for medium density polyethylene pipe with internal compression nut, is a quick connector for polyethylene pipe and threaded accessory.

Code Size
F08-302 20X1/2"X20
F08-302 25X3/4"X25
F08-302 32X1"X32
F08-302 40X1.1/4"X40
F08-302 50X1.1/2"X50
F08-302 63X2"X63

• Body, nuts and rings made of brass
• O-rings in EPDM
• Finishing: yellow brass
• Threaded: ISO 228

Brass Compression Fitting for PE Pipe with Internal Compression Nut

For your installation needs with polyethylene tube Runner sanitary is offering a range of brass fittings for polyethylene pipe with internal thread in versions coupling - coupling to connect tube with tube and coupling - threading for the connection of tube with threaded fittings. This allows for a diverse range of connection options for tube and accessories.
These brass fittings are used for connecting high and low density polyethylene tube. In this family the union with the polyethylene pipe achieves the sealing with an O-ring compressed against the tube, while a gripping ring clamps slightly against it to prevent tearing. The tightening action is achieved with a clamping part, which is threaded on the inside of the fitting body, giving the name to the family: with internal compression nut. Typical fields of application are for irrigation, for drinking water supply, in sanitary systems.
The brass used on their manufacture is conforming for hot forged nut and body, brass for parts machined from bar and EPDM for the O-ring seal.

Item Description Materials
1 Body brass
2 O ring EPDM
3 Washer ring brass
4 Compression (C-Ring) brass
5 Nut brass
  • • Suitable for applications in plumbing system and heating installations
  • • Compliant with DIN8076-1 standard
  • • Adaptable for polyethylene pipes (PE)
  • • Body and nut made in hot forging brass according to UNE-EN12165
  • • Full range from 20mm to 63mm
  • • Working temperature: -10°C to + 80°C
  • • Max pressure PN: 16 bar
  • • Marked for full traceability
  • • Surface treatment options: raw
  • • Fastening threads: ISO228/1
