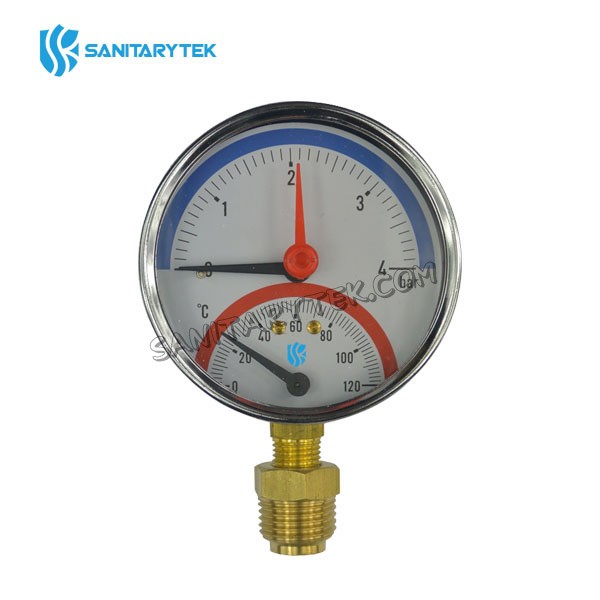

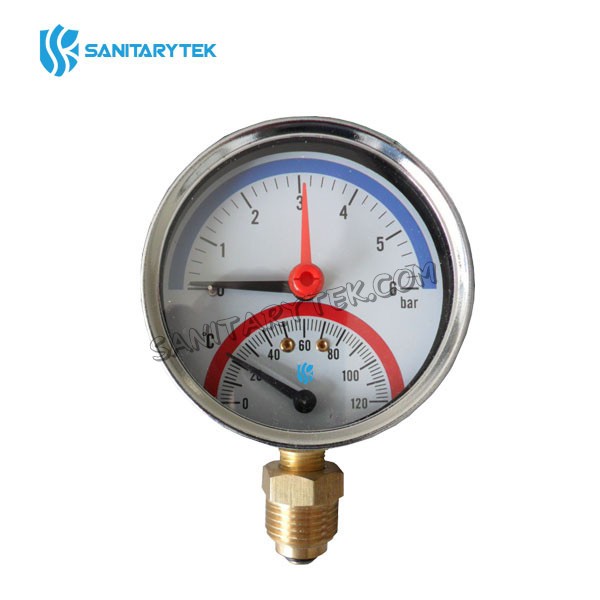

Combined thermometer pressure gauge

  • Code:GP407
  • Casing:black steel
  • Cover:scratch-resistant plastic
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

    Combined thermometer pressure gauge




    Code Range Temperature Dial dia.
    GP407 0-4 bar 0-120°C 80mm
    GP407 0-6 bar 0-120°C 80mm
    GP407 0-10 bar 0-120°C 63mm

    • Casing: black steel (plastic optional)
    • Cover: scratch-resistant plastic
    • Dial: powder-coated aluminium
    • Steel case center bottom entry with automatic shut-off valve
    • Red mark pointer
    • Accuracy class: 2.5 (pressure), 2 (temperature)
    • Scale: 0°C-120°C, 0-4 bar (80mm), 0°C-120°C, 0-6 bar (80mm), 0°C-120°C, 0-10 bar (63mm)
    • Connection: 1/2" brass
    • Thread: BSP, NPT
