Combined thermometer pressure gauge, back connection
- Code:GP408
- Casing:black steel
- Accuracy class:2.5 (pressure)
- Connection:1/2"
- MOQ:2000 pcs
MOQ 2000 pcs
Save to favoritesView wishlist
Product Description

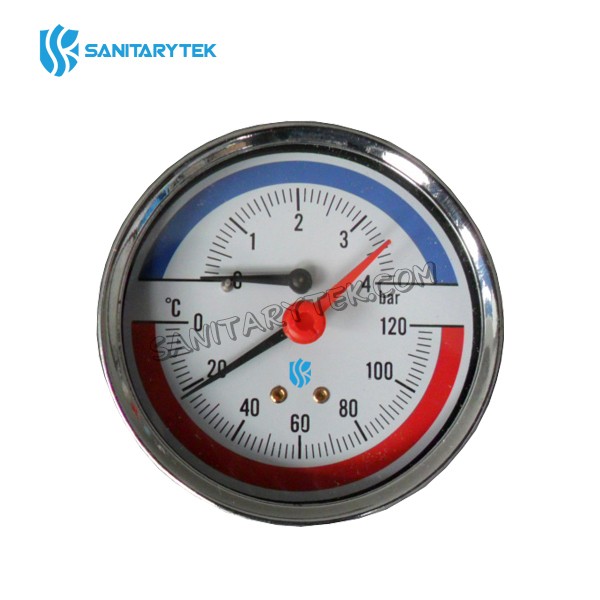

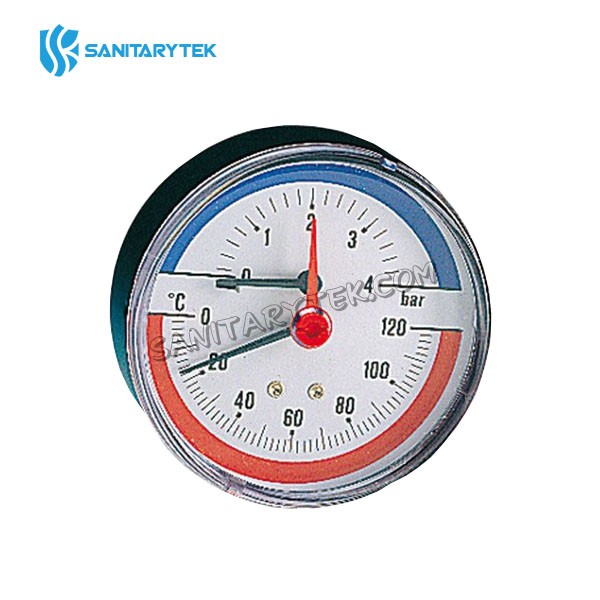

Combined thermometer pressure gauge, back connection
| Code | Range | Connection | Dial dia. |
| GP408 | 0÷4 bar/0÷120°C | 1/2" | 80mm |
| GP408 | 0÷4 bar/0÷120°C | 1/2" | 80mm |
• Casing: black steel (plastic optional)
• Cover: scratch-resistant plastic
• Dial: powder-coated aluminium
• Red mark pointer
• Steel case center back entry with automatic shut-off valve
• Accuracy class: 2.5 (pressure), 2 (temperature)
• Dial diameter: 80mm
• Scale: 0°C-120°C, 0-4 bar, 0°C-120°C, 0-6 bar
• Connection: 1/2" brass
• Thread: BSP
