Brass water tank connector male thread
Code: F12-025
Material: brass
Place of origin: Niingbo, China
Sample: Support
Product Description

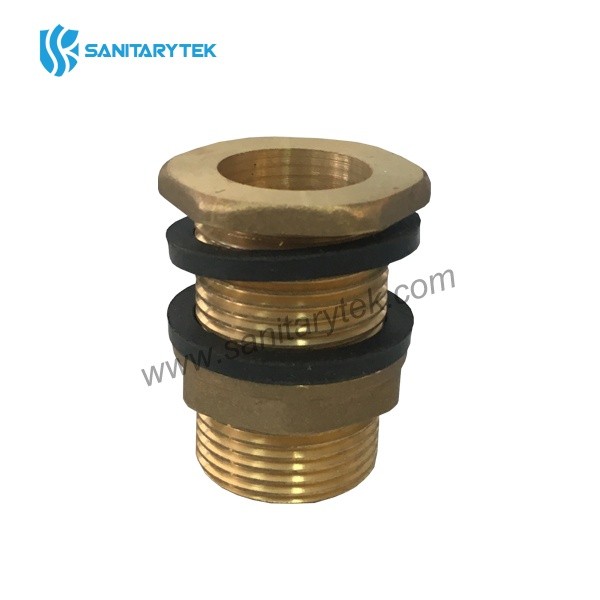

Brass Water Tank Connector Male Thread
Brass flanged tank connector, threaded brass fitting used as feedthroughs for supplying water to a tank or vessel. The tank outlet Male thread is made of brass usually used to pass through the wall of a tank of water. It consists of two parts, a cylinder made threaded fitting with a hexagonal flange at the end and a backnut for tightening and fixing. During assembly, and to ensure proper sealing, use with appropriate gasket and washer.
Code | Size | Finish |
F12-025 | 1/2" | yellow |
F12-025 | 3/4" | yellow |
F12-025 | 1" | yellow |
• Included in the fitting are a backing nut and two washer. The washer seal ensures the tank does not leak.
• Material: brass
• Thread: ISO 228
