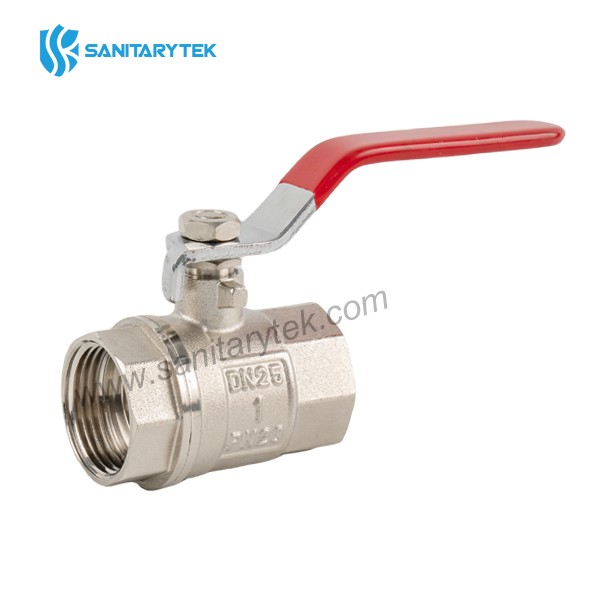

Brass ball valve with red steel flat handle,F/F, full bore
Code: V20-001
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
• Body in nickel-plated brass.• Female/female thread.
• With gland, PTFE seat and gland packing.
• Steel flat handle (red or blue).
• Working temperatures: -10°C to +100°C.
• Working media: water (water supply systems and central heating).
• Thread: ISO228.
• This ball valve with internal threading uses a metal ball with a hole bored through the center, sandwiched between two seats to control flow. Can be used in residential, commercial plumbing, water wells and many other applications. Ball valves are capable of throttling gases and vapors and are especially useful for low flow situations.
| Code | Size |
| V20-001 | 3/8" |
| V20-001 | 1/2" |
| V20-001 | 3/4" |
| V20-001 | 1" |
| V20-001 | 11/4" |
| V20-001 | 11/2" |
| V20-001 | 2" |
| V20-001 | 2-1/2" |
| V20-001 | 3" |
| V20-001 | 4" |
