Braided stainless steel flex connector, compression ends

  • Code:H02-005B
  • Material:stainless steel
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

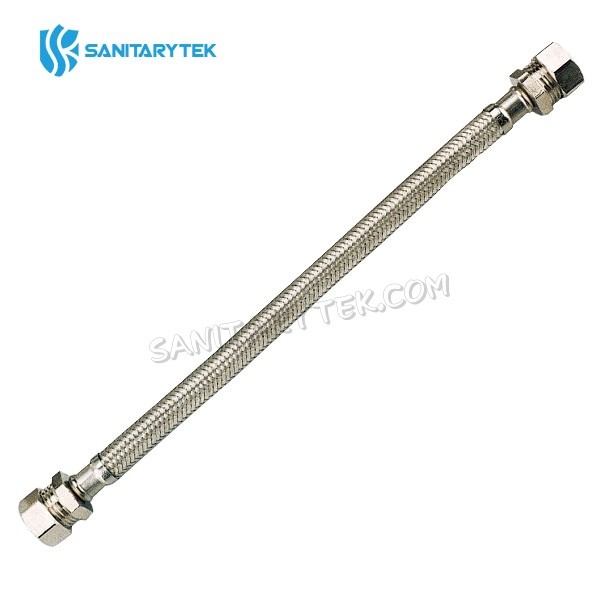

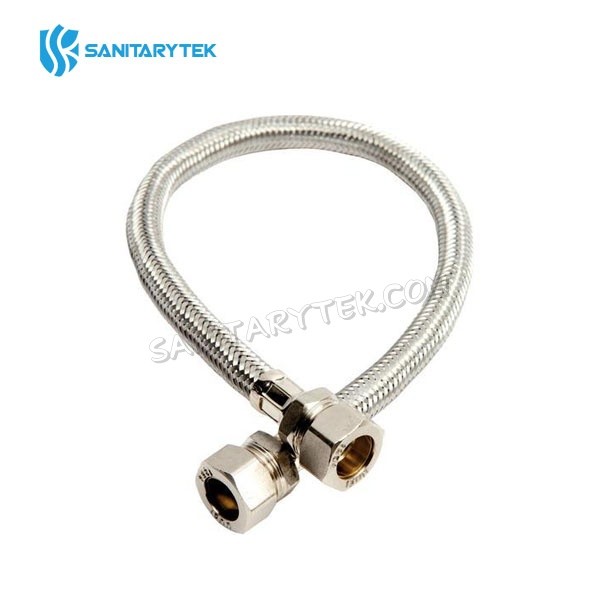

    Stainless Steel Braided Flexible Tap Connector Hose CxC

    Stainless steel braided hose which is flexible and resistant to kinks and bends. Constructed with a compression fitting at both ends. This flexible hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.

    Code Size Length (cm)
    H02-005B 15mm x 15mm 30, 40, 50, 60, 90
    H02-005B 22mm x 15mm 30, 40, 50, 60, 90

    • Constructed with a stainless steel outer braid
    • Reinforced crimped ends for a firm secure connection
    • Inner tube: EPDM.
    • Max. working temperatures: 90°C.
    • Max. working pressure: 1.0 Mpa (10 bar)
