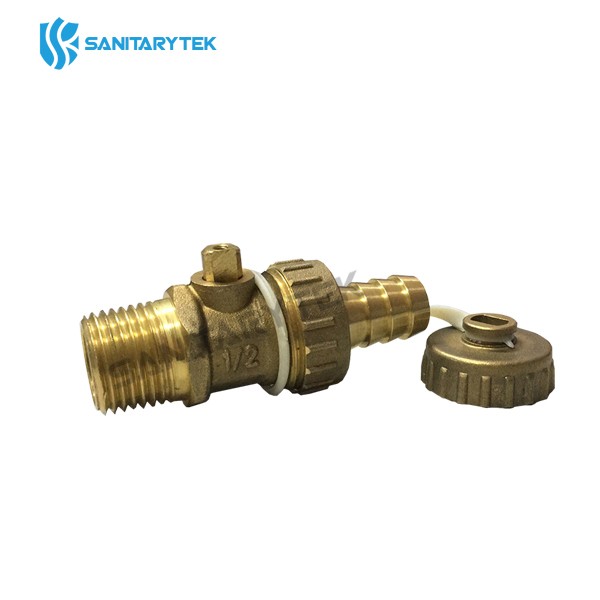

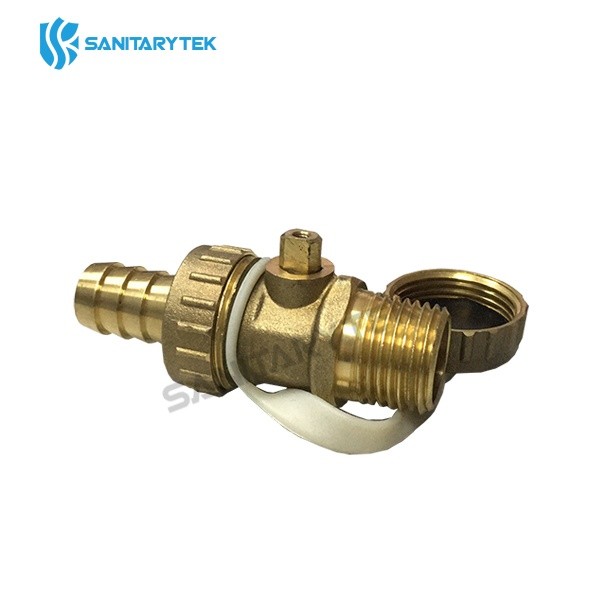

Boiler drain valve with hose connection and operation cap

Drain ball valve for boiler with hose connection and operation cap

Code	Size
V20-024	1/2"

• 1/2” boiler drain valve with operating key in cap
• Body in brass
• Finishing sandblasted yellow
• Without lever handle
• Ball sealing: PTFE
• Media: water.
• Thread ISO 228
• Working temperatures : 0°C to 90°C
Valve suitable for interrupting fluids that are generally non-corrosive, compatibly with the valve materials.
Plumbing and heating systems are the ideal fields of application, where this valve is used to unload heat transfer fluids from the heating system.
The operating mechanism seal features two O-Rings with an internally installed stem and anti-ejection system.
It is advisable to carry out a complete maneuver cycle at least once every three months in order to prevent limescale deposits that could compromise the valve functioning.
