1-Pipe angled thermostatic radiator valve for panel radiators

  • Code:V21-011
  • Material:Brass
  • Finish:nickel plated
  • Place of origin:Ningbo,China
    Send Email
    Save to favoritesView wishlist
    Share
    Product Description

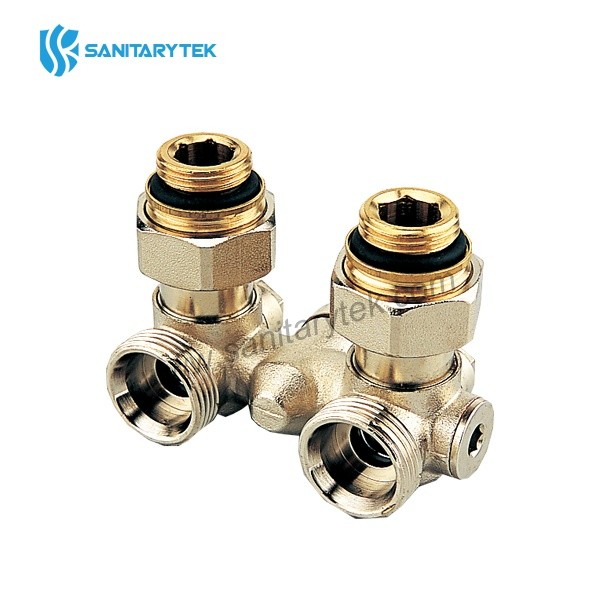

    "H" valve for panel radiators, One-pipe angled valve 1/2"x3/4"


    H valves are installed on panel style radiators. They are connected to the bottom supply and return ports, providing fluid flow to the upper thermostatic valve built into the radiator.

    • H valve for panel radiators with built-in thermostatic valve unit.
    • One-pipe straight version (floor connections) with 1/2" F radiator connections.
    • With adjustable by-pass.
    • Body in nickel-plated brass
    • With 1/2"M x 3/4"M adapter
    • Working medium: water.
    • Working temperatures : 0°C to +90°C.
    • Maximum working pressure: 1.0 Mpa (10 bar)
    • Threads: ISO 228


    Code Size
    V21-011 1/2"x3/4"
