Stainless steel braided flexible tap connector hose
- Code:H02-005A
- Material:stainless steel
Save to favoritesView wishlist
Product Description

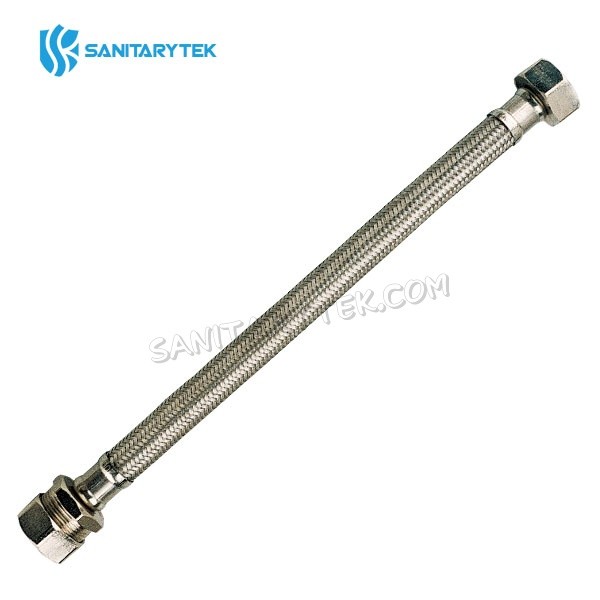

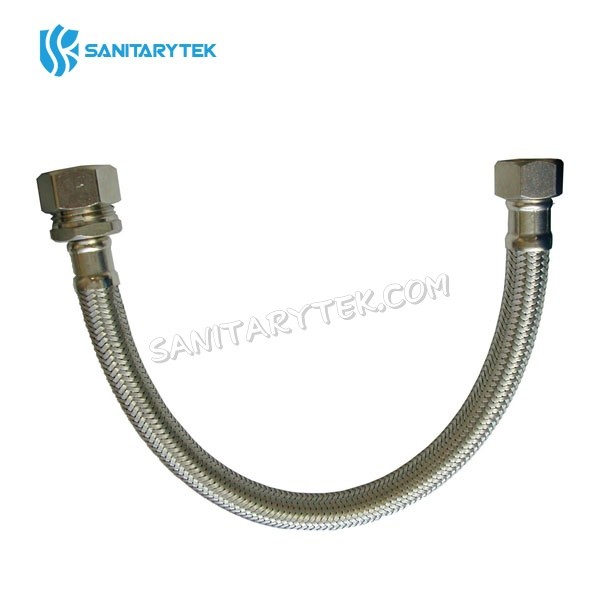

Stainless Steel Braided Flexible Tap Connector Hose FxC
The stainless steel braided hose which is flexible and resistant to kinks and bends. Constructed with a 15mm / 22mm compression fitting at one end and a 1/2" / 3/4" female BSP thread at the other end. This hose has a 10 bar working pressure and a working temperature from -5°C to 90°C.
| Code | Size | Length (cm) |
| H02-005A | 3/8"Fx 15mm | 30, 40, 50, 60, 90 |
| H02-005A | 1/2"Fx 15mm | 30, 40, 50, 60, 90 |
| H02-005A | 3/4"Fx 15mm | 30, 40, 50, 60, 90 |
| H02-005A | 3/4"Fx 22mm | 30, 40, 50, 60, 90 |
• Constructed with a stainless steel outer braid
• Reinforced crimped ends for a firm secure connection
• Inner tube: EPDM.
• Max. working temperatures: 90°C.
• Max. working pressure: 1.0 Mpa (10 bar)

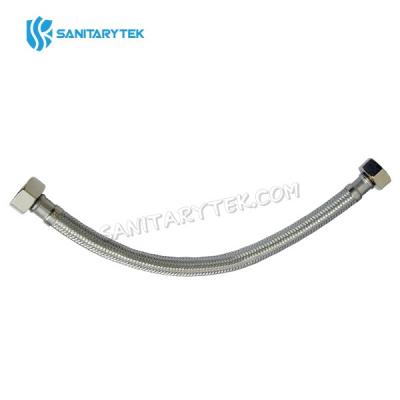

Stainless steel braided flexible hose, FxF
