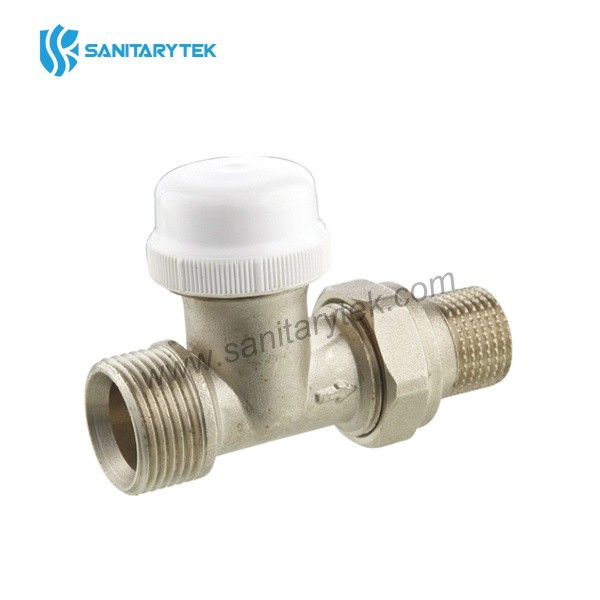

Straight thermostatic valve with male connection and protection cap
Code: V21-055
Material: Brass
Finish: nickel plated
Place of origin: Ningbo,China
Product Description
Straight thermostatic valve with male connection and protection cap
• finishing: nickel plated
• tail piece available with or without O-ring
• connection thread for head: M30 x 1.5
• working temperatures : 0°C to +90°C
• maximum working pressure: 1.0 Mpa (10 bar)
• working medium: water
• Threads: ISO 228
| Code | Size | Head connection |
| V21-055 | 3/4"x1/2"M | M30 x 1.5 |
| V21-055G | 3/4"x1/2"M O-ring | M30 x 1.5 |
