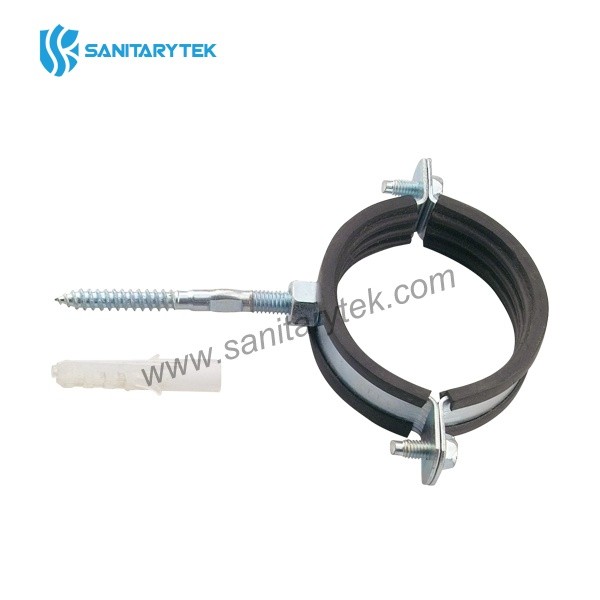

Pipe clamp with rubber and with screw
Code: F14-101
Material: steel
Place of origin: Ningbo, China
Sample: Support
Product Description
Pipe Clamp with Nut & Rubber Profile, with Bolt Screw and Plug
Fitted with noise suppressing rubber lining. Reinforcing grooves maintain lining shape. All fittings are included. Suitable for installation with restricted space; bolt features screw-cross-head Various sizes listed. Single or double type available.
| Code | Size |
| F14-101 | 3/8" |
| F14-101 | 1/2" |
| F14-101 | 3/4" |
| F14-101 | 1" |
| F14-101 | 1.1/4" |
| F14-101 | 1.1/2" |
| F14-101 | 2" |
| F14-101 | 2.1/2" |
| F14-101 | 3" |
| F14-101 | 4" |
| F14-101 | 5" |
| F14-101 | 6" |
• Used for mounting of pipes to the walls(vertical/horizontal) ceilings and floors.
• EPDM rubber provides to reduce the noise and the vibration in the environment with its EPDM rubbered versions. This noise reduction is 15Db according to DIN 4109. EPDM rubber allows to reduce the vibrations and absorb properly.
• Side screws are protected against loss during assembly with the help of plastic washers
• Material: galvanized steel
