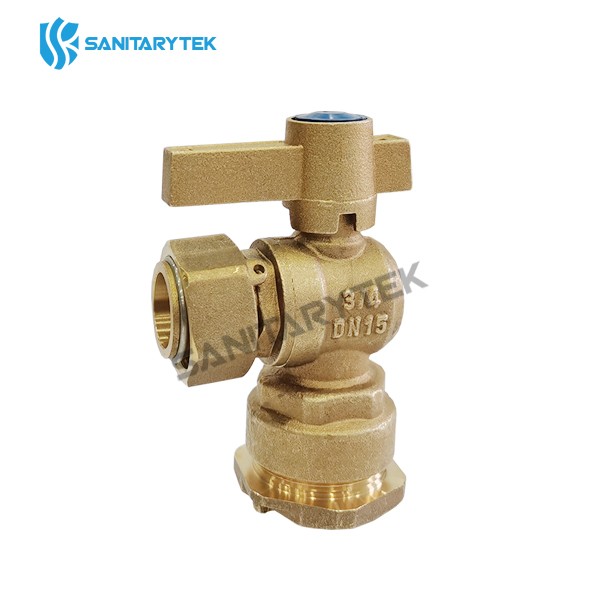

Brass angle type anti fraud ball valve for water meter
ltem No.: V18-842
Color: Natural brass color
Size: DN15*3/4''*25mm
Sample: Support
Material: Brass
Product Description
CW617N Brass Material Angle Type Anti Fraud Ball Valve With Female Thread And PE Connection End for water meter
• Angled shut-off valve for water meter with incorporated connection for HDPE / PVC pipe.
• Brass hot forged body.
• Lockable operating handle in brass.
• Swivel nut with plumbing hole.
• PTFE seat.
• Working temperatures: 0°C to +90°C.
• Max. working pressure: 16 bar.
• Threaded : ISO 228.
• Size: DN15 x 20mm x 3/4", DN15 x 25mm x 3/4"
• Applications: House connection and drinking meter networks.
| Code | Size |
| V18-842 | DN15 x 3/4"x 20mm |
| V18-842 | DN15 x 3/4"x 25mm |
