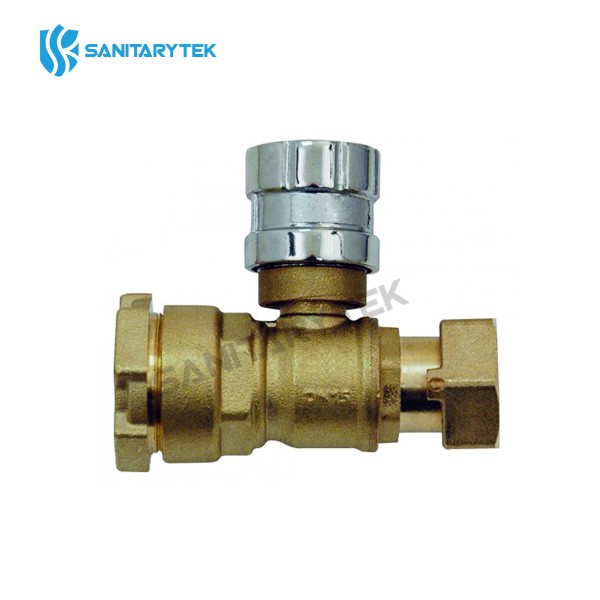

Straingt magnetic lockable ball valve with HDPE connection
ltem No.: V18-841MS
Material: brass
Color: natural brass color
Size: DN15*3/4''*25mm
Product Description
• Straight shut-off valve for water meter with incorporated connection for HDPE / PVC pipe.• Brass hot forged body.
• Connection system: inlet compression fitting (to connect plastic pipe) and outlet coupling ring with thread 3/4".
• Equipped with a magnetic locking system.
• Swivel nut with plumbing hole.
• PTFE seat.
• Working temperatures: 0°C to +90°C.
• Max. working pressure: 16 bar.
• Threaded: ISO 228
Code
Size
V18-841MS
DN15 x 3/4"x 25mm
