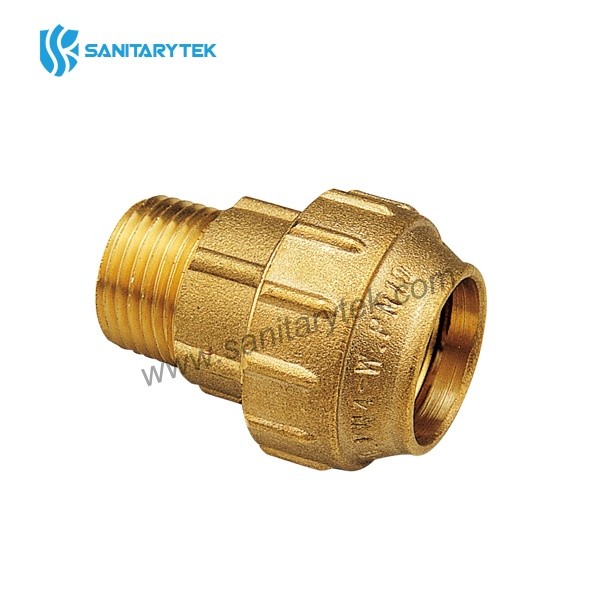

Straight male fitting for polyethylene pipe
Code: F07-101
Material: brass
Place of origin: Ningbo, China
Sample: Support
Product Description
Straight male fitting for polyethylene pipe
Straight male coupler in brass for polyethylene (PE) pipe with external compression nut, is a quick connector for polyethylene pipe and threaded accessory. They are also suitable for any kind of sanitary installation such as domestic, commercial, industry and farming and with any type of non-corrosive fluid.
| Code | Size |
| F07-101 | 1/2"X20 |
| F07-101 | 3/4"X25 |
| F07-101 | 1"X32 |
| F07-101 | 1.1/4"X40 |
| F07-101 | 1.1/2"X50 |
| F07-101 | 2"X63 |
• Body, nuts and rings made of brass
• O-rings in NBR
• Finishing: yellow brass
• Threaded: ISO 228
Brass Compression Fittings for PE Pipes
For polyethylene pipe Runner sanitary offers this family of brass fittings with external compression nut. A range of accessories for polyethylene tube of high and low density to connect tube with tube (coupling – coupling) and tube to threaded fittings (coupling – threading). A series of fittings for your applications in irrigation systems, for supply networks of potable water and also in conveyance and distribution systems of fuel gases.
The body of the fitting has an external threading (male thread) to which is threaded a clamping nut, achieving the sealing of the union thanks to the O-ring being compressed against the tube, while a gripping ring clamps slightly against it to fix the tube.
The material used is brass for forged parts (nut and body), brass for bar machined parts (clamp and insert) and for the O-ring rubber NBR.
| Item | Description | Materials |
| 1 | Body | brass |
| 2 | O ring | EPDM |
| 3 | Washer ring | brass |
| 4 | Compression (C-Ring) | brass |
| 5 | Nut | brass |
- • Suitable for applications in plumbing system and heating installations
- • Compliant with DIN8076-1 standard
- • Adaptable pipe: LDPE, MDPE, HDPE
- • Body and nut made in hot forging brass according to UNE-EN12165
- • Wide range of sizes from 20mm to 63mm
- • Working temperature: -10°C to + 80°C
- • Max pressure PN: 16 bar (PN-16)
- • Marked for full traceability
- • Surface treatment options: raw
- • Fastening threads: ISO228/1
